Jiangsu Nanyuan Hydraulic
Y83/W-630 Hydraulic Metal Briquetting Press
Nanyuan archive — Y83W-630: Cylinder force (ton): 630; Press mould (mm): Φ200×550. Confirm the current configuration.
Product Category
Metal Briquetting Presses
Browse the range
Explore Metal Briquetting Presses models
OEM ODM Briquetting Press Machine
A custom briquetting proposal should start with chip type, moisture, contamination, briquette diameter and handling target.
Y83-400 Series Briquetting Press
Nanyuan archive — Y83-400: Cylinder force (ton): 400; Press mould (mm): Φ140×300. Confirm the current configuration.
Y83/W-1250 Hydraulic Metal Briquetting Press
Nanyuan archive — Y83W-1250: Cylinder force (ton): 1250; Press mould (mm): Φ300×700. Confirm the current configuration.
Y83W-630 Briquette press machine
Nanyuan archive — Y83W-630: Cylinder force (ton): 630; Press mould (mm): Φ200×550. Confirm the current configuration.
Y83-315 Series briquetting Press
Nanyuan archive — Y83-315: Cylinder force (ton): 315; Press mould (mm): Φ120×180. Confirm the current configuration.
Y83-600 Series Briquetting Press
The older Y83 table has neighboring 500 and 630 models; confirm whether Y83-600 is a separate current specification.
Y83/W-1000 Hydraulic Metal Briquetting Press
Nanyuan archive — Y83W-1000: Cylinder force (ton): 1000; Press mould (mm): Φ240×600. Confirm the current configuration.
Y83 Series Metal Briquetting Machine
Choose the Y83 mould and force around a real chip sample; size alone does not establish achievable briquette density.
Equipment selection
What should buyers know about metal briquetting presses?

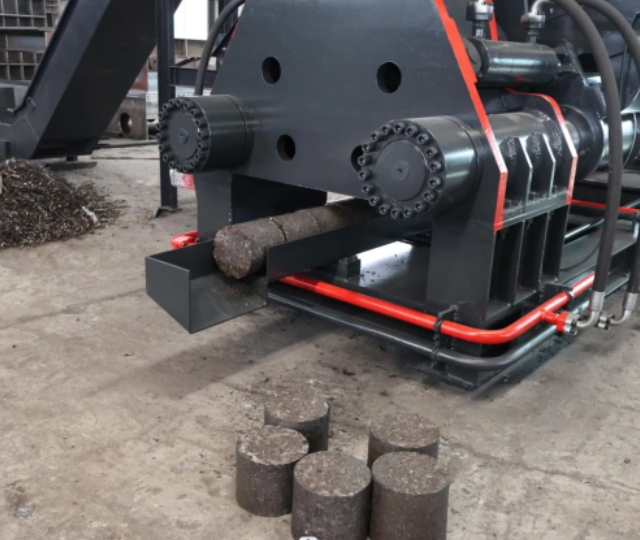

A metal briquetting press compresses chips or turnings into briquettes for easier handling and potential material recovery. Material type, chip shape, moisture and loose density strongly influence the equipment choice. State the intended downstream use before deciding on briquette dimensions or throughput.
Selection checklist
- Identify the metal, chip or turning form, and any mixed grades or contaminants.
- Measure or estimate feed volume and moisture; state whether coolant recovery matters.
- Confirm the receiving process’s briquette size and handling requirements.
- Ask for material-specific test conditions behind density and hourly-capacity figures.
Buyer questions
Can the same press process all metal chips?
Suitability depends on chip form, metal, moisture and the chosen configuration. Representative samples are the best basis for confirmation.
Is briquetting the same as scrap baling?
Both compact material, but briquetting commonly addresses smaller chips and turnings. Compare the feed and required output before choosing either process.
Figures such as force, throughput and output size must be checked against the selected model and representative material.
For a model-specific recommendation, send your material, feed dimensions, target output, destination and power standard.
